สถานที่กำเนิด: | Suzhou,China |
ชื่อแบรนด์: | SINCE-GAS |
ได้รับการรับรอง: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
หมายเลขรุ่น: | PO |
จำนวนสั่งซื้อขั้นต่ำ: | 1 set |
---|---|
ราคา: | Negotiate |
รายละเอียดการบรรจุ: | Normal exported wooden case |
เวลาการส่งมอบ: | 2 months after received down payment |
เงื่อนไขการชำระเงิน: | L/C, T/T, Western Union, MoneyGram |
สามารถในการผลิต: | 1000 sets/year |
ความจุ: | 5-1500 นิวตันเมตร3/ชม. | ความบริสุทธิ์: | 90%-94% |
---|---|---|---|
จุดน้ำค้าง: | -65℃ | ใช้พลังงาน: | 1 กิโลวัตต์ |
การดำเนินการ: | อัตโนมัติอย่างเต็มที่ | อายุขัย: | 8-10 ปี |
การบริโภค: | การประหยัดพลังงาน | วัสดุ: | เหล็กกล้าคาร์บอน/เหล็กกล้าไร้สนิม |
แสงสูง: | เครื่องกำเนิดออกซิเจนเกรดทางการแพทย์,เครื่องกำเนิดออกซิเจนในโรงพยาบาล,โรงงานออกซิเจนอุตสาหกรรม 150 Nm3 / ชม |

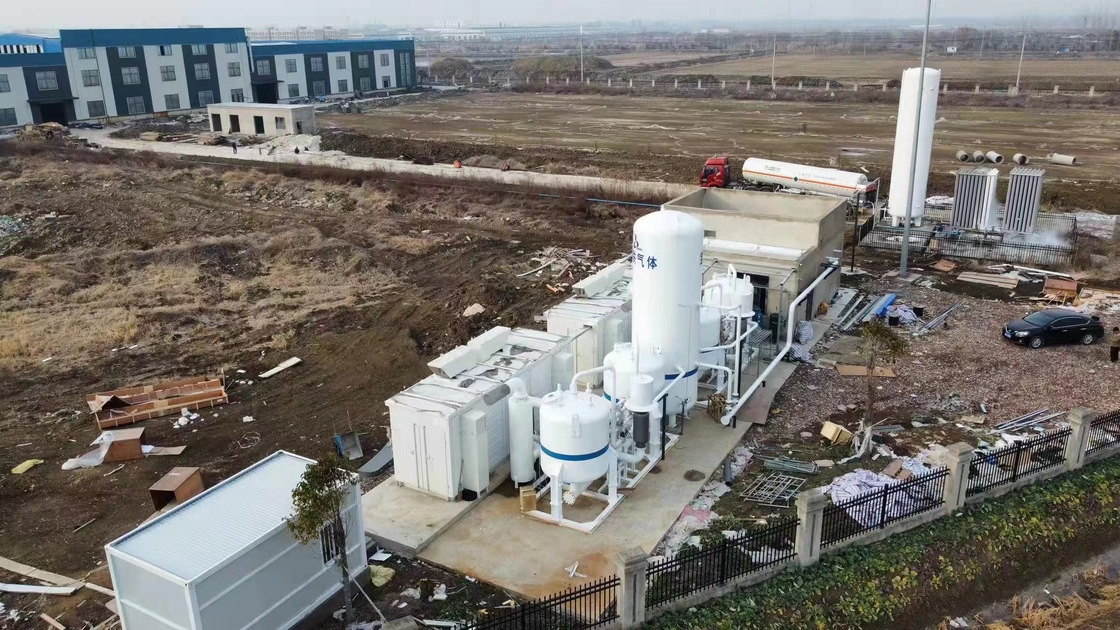

Industrial Oxygen Plant / Medical Oxygen Generating Systems 2~150 Nm3/h
PSA oxygen generator
PSA ( Pressure Swing Adsorption) Technology a revolution in Non Cryogenic Air Separation and
Oxygen Generation Technology uses special grade of ZMS ( Zeolite Molecular Sieve).
The compressed air is passed through a Twin Tower PSA module interconnected with automatic
changeover valves. After passing through a Refrigerated Dryer air gets dried. Dried compressed air
will now come in contact with bed of Zeolite molecular sieves (ZMS). Zeolite Molecular Sieves are special
grade of adsorbent which have the property of preferential adsorption of nitrogen molecules.
At a time one tower remains under nitrogen production cycle, whereas the other tower undergoes
regeneration
which is achieved through depressurization of the tower to atmospheric pressure. The outgoing oxygen
gas is sent to a surge vessel where the minimum pressure will be maintained with the help of Back
pressure Regulator
Technical Specifications:
Capacity: 2~150 Nm3/h
Purity: 92±2%
Initial Pressure: 0.05~0.4 Mpa
Dew point: -65℃
Product Features
·
1, Full set of equipment can run in time of request or have a sudden stop. Short starting time with high
reliability.
2, Easy maintenance, less spare parts
3, Very simple operation, well-equipped monitors help to good running in state of neglect.
4, Advanced PLC control and data acquisition system, a data interface is kept for RMON
5, Scientific designation in structures, special gas diffusion unit, avoiding the high-speed impact by air flow
and CMS being broken
6, Using the automatic internal balancing & clamping device, the unique sub-filling molecular sieve technology
help to raise reliability in long term.
7, oxygen emptying and interlock device ensure the quality level of oxygen.
8, Less occupation in land, easy installation, poor requirement in workshop, no request in foundation.
Application :
Food and beverage industries
Aircraft& motor vehicle tires
Chemical and petrochemical industries
Electronics industry
Metallurgy / heat treatment
Pharmaceutical industry
Glass and lighting industry
Oil & Gas
Why they always choose SINCE?
Many years of experience and expertise in manufacturing and supplying gas plants;
,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom
company who got ,TS (Manufacture License of special equipment)
CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen
generator.
Excellent infrastructure set up teamed by experienced and qualified engineers.
Sophisticated and developed R&D wing in assistance for installation and use of plants.
