Suzhou Since Gas System Co.,Ltd

Provide reliable service&products for gas field,push industry civilization progress!



บ้าน ผลิตภัณฑ์Regenerative Desiccant Dryers

Energy Saving Regenerative Desiccant Dryers Heatless Desiccant Dryers

Energy Saving Regenerative Desiccant Dryers Heatless Desiccant Dryers

  • Energy Saving Regenerative Desiccant Dryers Heatless Desiccant Dryers
Energy Saving Regenerative Desiccant Dryers Heatless Desiccant Dryers
รายละเอียดสินค้า:
Place of Origin: Suzhou,China
ชื่อแบรนด์: SINCE GAS
ได้รับการรับรอง: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PA
การชำระเงิน:
Minimum Order Quantity: 1 set
ราคา: Negotiate
Packaging Details: Exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/year
ติดต่อ
รายละเอียดสินค้า
วัสดุ: เหล็กกล้าคาร์บอน / เหล็กกล้าไร้สนิม พิมพ์: สารดูดความชื้น
จุดน้ำค้าง: -60 ℃ ประเภทการใช้งาน: อัตโนมัติ
แสงสูง:

เครื่องเป่าลมดูดความชื้นแบบรีเจนเนอเรทีฟ

,

เครื่องเป่าลมอัดแบบแช่เย็น

,

เครื่องเป่าสารดูดความชื้นแบบรีเจนเนอเรทีฟประหยัดพลังงาน



Energy Saving Regenerative Desiccant Dryers Heatless Desiccant Dryers





Descriptions

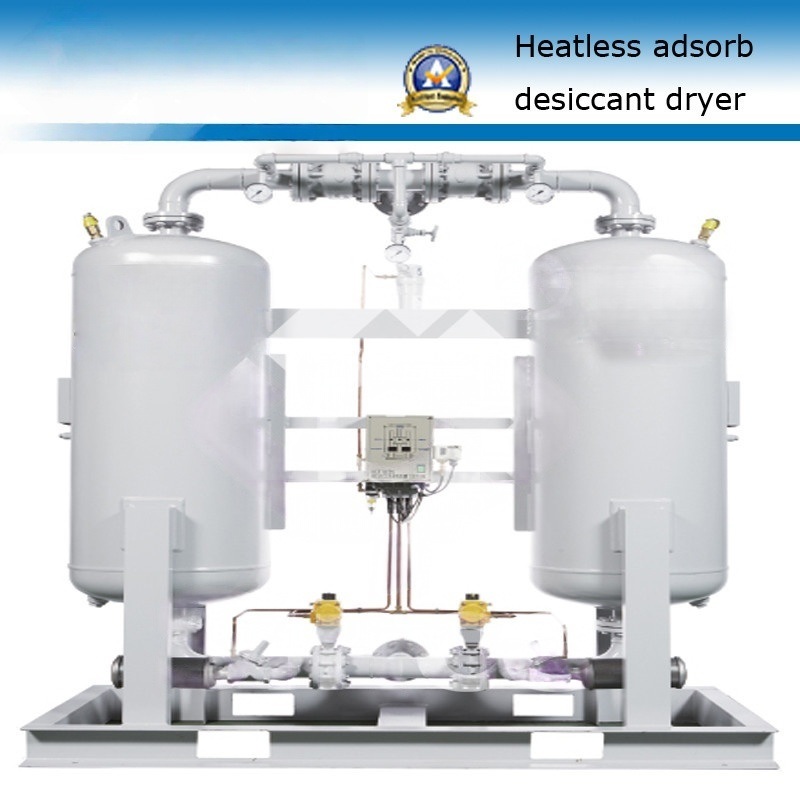

SINCE Series Heatless compressed Air Dryer is a kind of simple, reliable and economical method for

removing water vapor from compressed air. The normal outlet pressure dew point is -40℃, lowest

pressure dew point can be -70℃.



the SINCE Series Heatless compressed Air Dryer is ideal for applications where compressed air lines

are exposed to blew zero ambient temperatures, or where special processes require air at an extremely

low relative humidity. This unit provides instrument quality air and is designed for maximum reliability

and long, trouble-free service.



the SINCE Series Heatless regenerative Air Dryer is based on pressure-swing

adsorption technology. There are two desiccant towers filled with activated alumina, as saturated air

flows up through the tower , its moisture content adheres to the surface of the activated alumina beads.

The dry air is then discharged from the tower into the distribution system.



After 5 minutes of operation on one tower the flow is switched to the other tower through the use of

a timed system of directional valves. A portion of dried compressed air is diverted through an orifice,

expanded to atmospheric pressure, and directed into the regenerating tower, where the moisture

accumulated during the drying cycle is stripped off and purged to the atmosphere.Standard Features

Reliable Timed controller Fieldproven over time, this design and technology maintain precise control

over all switching and purge valve functions.



High quality desiccant High quality, extra quantities of activated alumina is respectively filled in each

tower.



Pressure Gauges Located on each tower, provide visual indication of pressure during drying and

regeneration processes.



Product clean&pure compressed air

Pressure:≤9bar

Normal pressure dew point:≤-40 to-70℃

Capacity :5-5000Nm3/H
