Place of Origin: | Suzhou, China |
ชื่อแบรนด์: | SINCE |
ได้รับการรับรอง: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
Model Number: | PN |
Minimum Order Quantity: | 1 set |
---|---|
ราคา: | Negotiate |
Packaging Details: | Exported wooden case |
Delivery Time: | 2 months after received down payment |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 sets /per year |
วัสดุ: | เหล็กกล้าคาร์บอน / เหล็กกล้าไร้สนิม | ใบรับรอง: | BV,,CCS,ISO,TS |
---|---|---|---|
ความจุ: | 5-5,000 Nm3/ชม | ความบริสุทธิ์: | 95%-99.9995% |
จุดน้ำค้าง: | -70 ℃ | ใช้พลังงาน: | 1 กิโลวัตต์ |
แอปพลิเคชัน: | ระบบ/โรงงานสร้างไนโตรเจนสำหรับสายการผลิต LNG เหลว | ||
เน้น: | sa โรงงานไนโตรเจน,ระบบสร้างไนโตรเจน psa,ใบรับรอง PSA Nitrogen Generator BV |

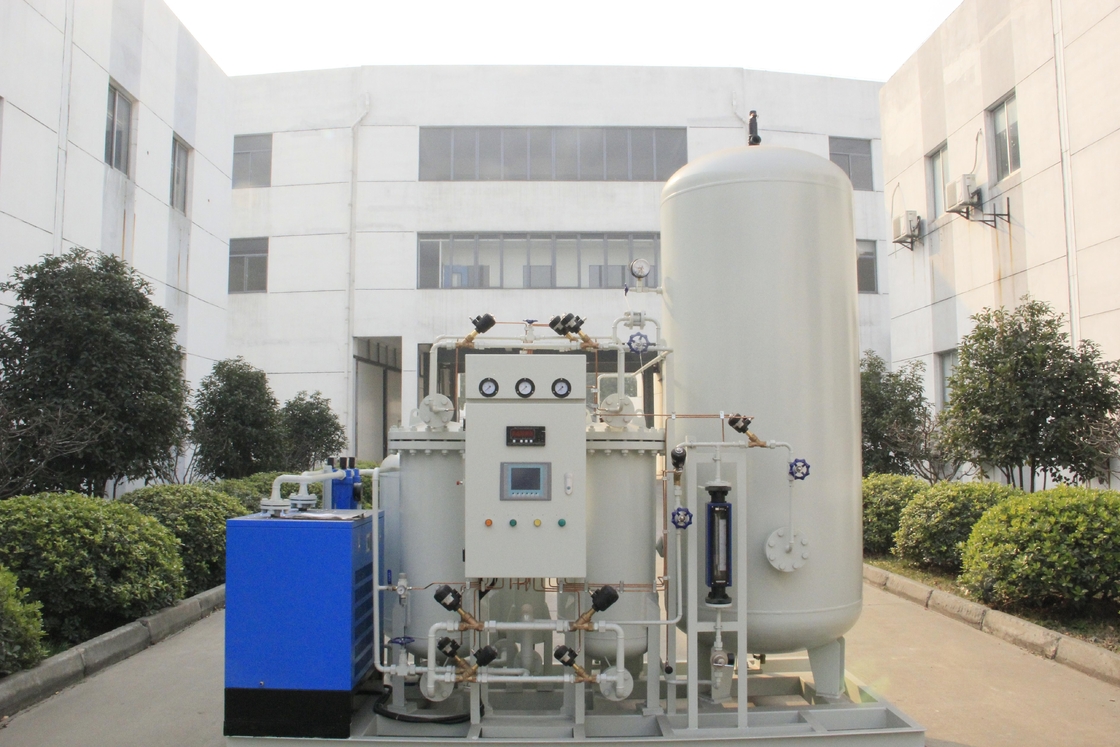

LNG Liquefaction Production Line PSA Nitrogen Generator with BV Certificate
PSA nitrogen generator
1) N2 Purity: 99-99.9995%
2) N2 Flow: 3-3000Nm3/h
3) N2 Pressure: 1-8 bar(adjustable)
4) SIMENS PLC Controller
Good Quality Nitrogen Generator
1) Computer-aided operation
2) Simple technical design
3) Easy maintenance
4) Low energy consumption
What is PSA ?
It is a technology used to generate gaseous Nitrogen on-site.
Carbon Molecular Sieve (CMS) adsorbs oxygen and water vapor molecules under high pressure - while allowing Nitrogen to pass through,so that the nitrogen is separated from the air.
Skid-mounted units can be supplied according to customer's requirements.
Technological Process
Nitrogen Generation system from our company are designed and manufactured based on the principle
of Pressure Swing Adsorption(PSA). Ambient air, having being compressed and purified to remove oil, water and dust, enters the adsoption swing adsorping device with two adsorption towers filled with
carcon molecular sieve(CMS). The compressed air flow to the adsorption tower from the bottom to up.
In the process, oxygen molecular is adsorbed, while nitrogen flows out of the upper side of adsorption tower and then enters then buffer tank for impure nitrogen. After a period of time, the CMS in the adsorption tower is saturated by the oxygen adsorbed. At this time, regeneration is needed. It is
realized by stopping adsorbing step and reduce pressure in the adsorption tower. Adsorption and regeneration are conducted alternatively in the two adsorption towers to ensure the consecutive output
of nitrogen gas.
The whole system components
The whole nitrogen generation system mainly consists of the air compressor, the compressed air
receiver, filters, refrigeration dryer, the PSA nitrogen generator, and the nitrogne receiving tank.
For the air compressor, famous brand such as the Atlas Copco, the Ingersoll Rand can be available
from our company to match the PSA nitrogen generators.
For filters, the elements with brand of Hankison, Domnick are available.
For refrigeration dryer, we have J.mec, the first brand within China, also Hanzhou Union Filter the professional manufacturer of dryer and filters.
Specifications:
Nitrogen Capacity/Flow rate: 3-3000Nm³/h
Nitrogen Purity: 95%-99.9995% (95%, 97%, 98%, 99%, 99.5%, 99.9%, 99.99%, 99.999%, 99.9995%)
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
... |
... |
... |
... |
... |
... |
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
1The Application Range of Good Quality Nitrogen Generator
Its suitable to use in small-scale nitrogen demand of chemical industry, nitrogen production and filling
and filling of injection solution, transfusion solution and oral liquid in pharmacy industry, the blow and replacement of instruments in laboratory, food preservation by filling in nitrogen in food industry,
agitation of beverages and expansion of foods.
2 The Main Characters of Good Quality Nitrogen Generator
1)The equipment adopts the brand-newly-designed filling technique and the service.
2)Special bypass design ensures lower energy consumption and higher yielding results.
3)Imported integrated pneumatic valve with original packaging guarantees the serviceability in a greater degree.
4)Computer-aided operation with the simple technical design makes for easy maintenance of the equipment.
3 Technical Parameters of Good Quality Nitrogen Generator
Nitrogen-making capacity: 3-3000Nm³/h
Power: 0.5KW
Purity: ≥99.995%
Dew point: ≤-70℃
Air source pressure: 0.8-1.0Mpa
Nitrogen-making pressure: 0.1-0.7Mpa
Excellent Energy-saving Features Reduce Air Cost:
1. Advanced process flow directly reduces compressed air consumption.
2. World famous molecular sieve ensures maximum energy-saving.
3. Advanced load adaptation technology further saves energy.
4. The most reliable air cleaning process ensures adsorbing efficiency and lifetime of molecular sieve.
5. National patent valve guarantees stable equipment operation.
6. Air tank ensures stable system air consumption.
7. Nitrogen buffer tank ensures stable system gas supply.
8. National patent compaction technology ensures long life of CMS.
9. Long-distance supervision and control.
10. Professional technologies ensure reliable gas supply.
11. Friendly human-machine interface.
