Place of Origin:
Suzhou, China
ชื่อแบรนด์:
SINCE
ได้รับการรับรอง:
CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number:
PN
| Attribute | Value |
|---|---|
| Material | Carbon steel/Stainless steel |
| Certificates | BV, CCS, ISO, TS |
| Capacity | 5-5000 Nm3/h |
| Purity | 95%-99.9995% |
| Dew point | -70 ℃ |
| Operate power | 1 KW |
| Application | Tungsten industry |

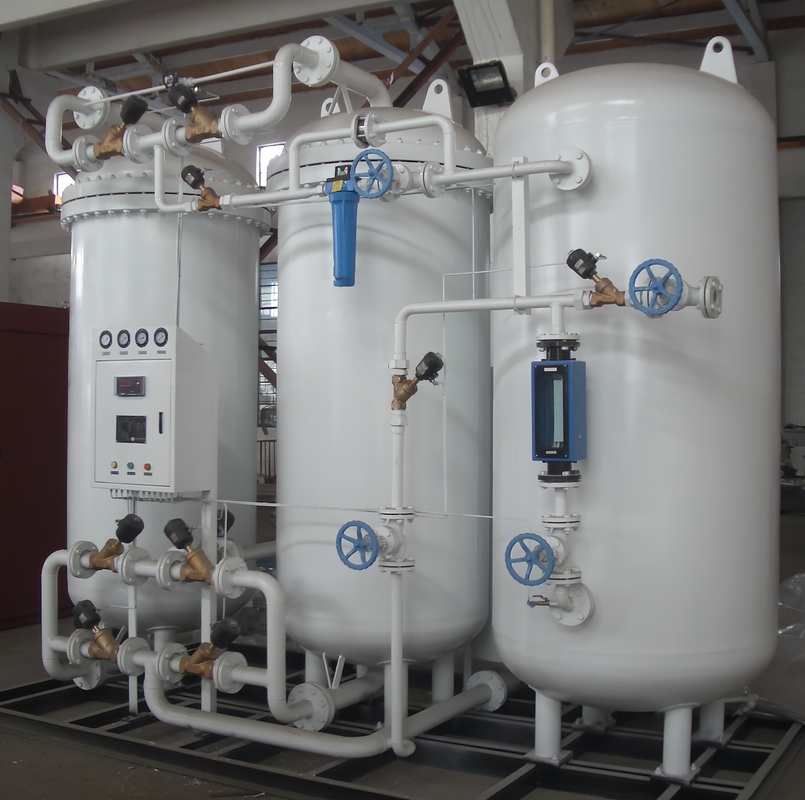

The PSA nitrogen generator uses carbon molecular sieve as adsorbent to produce nitrogen. Under pressure, the carbon molecular sieve has greater oxygen adsorption capacity than nitrogen adsorption capacity. A PLC controls pneumatic valves to alternate adsorption and desorption between two towers according to pressure changes, achieving oxygen/nitrogen separation to produce nitrogen at desired purity levels.
| No | Model | Capacity (Nm3/h) | Purity | Power (KW) | Overall size (mm) |
|---|---|---|---|---|---|
| 1 | PN-3-39 | 3 | 99.9% | 0.5 | 1800*1400*1500 |
| 2 | PN-5-29 | 5 | 99.5% | 0.5 | 1800*1400*1500 |
| 3 | PN-5-295 | 5 | 99% | 0.5 | 1800*1400*1500 |
| 4 | PN-8-295 | 8 | 95% | 0.5 | 1800*1400*1500 |
