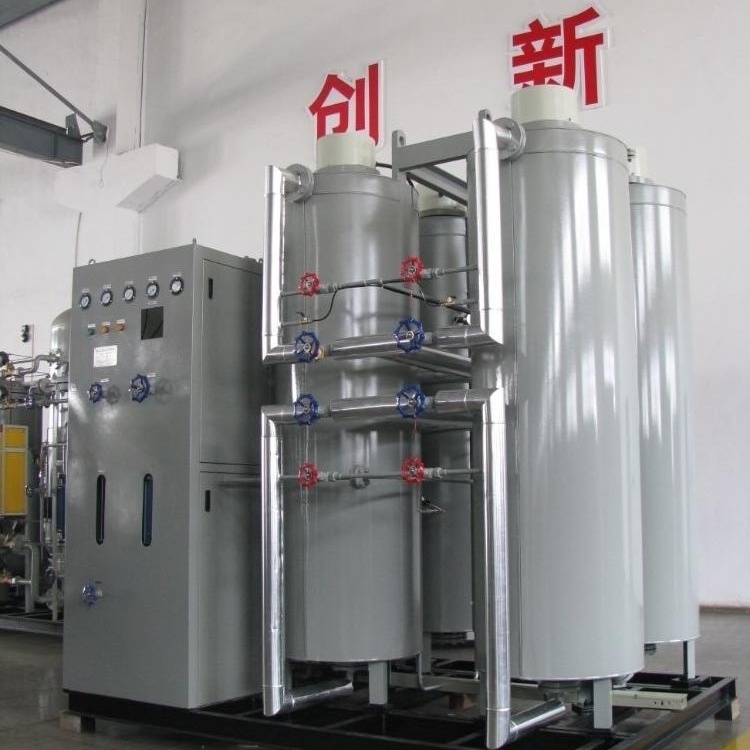

Fiber Chemical Industry High Purity Nitrogen Generator / Nitrogen Generation Unit

Fiber Chemical Industry High Purity Nitrogen Generator / Nitrogen Generation Unit

  • Fiber Chemical Industry High Purity Nitrogen Generator / Nitrogen Generation Unit
Fiber Chemical Industry High Purity Nitrogen Generator / Nitrogen Generation Unit
รายละเอียดสินค้า:
Place of Origin: Suzhou, China
ชื่อแบรนด์: SINCE
ได้รับการรับรอง: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PN
การชำระเงิน:
Minimum Order Quantity: 1 set
ราคา: Negotiate
Packaging Details: Exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets /per year
ติดต่อ
รายละเอียดสินค้า
วัสดุ: เหล็กกล้าคาร์บอน / เหล็กกล้าไร้สนิม ใบรับรอง: BV,,CCS,ISO,TS
ความจุ: 5-5,000 Nm3/ชม ความบริสุทธิ์: 95%-99.9995%
จุดน้ำค้าง: -70 ℃ ใช้พลังงาน: 1 กิโลวัตต์
แอปพลิเคชัน: อุตสาหกรรมเคมีไฟเบอร์
แสงสูง:

sa โรงงานไนโตรเจน

,

ระบบสร้างไนโตรเจน psa

,

เครื่องกำเนิดไนโตรเจนความบริสุทธิ์สูงในอุตสาหกรรมเคมี



Fiber Chemical Industry High Purity Nitrogen Generator / Nitrogen Generation Unit





Chemical Fiber - Chemical industry applied high purity Nitrogen gas equipment/system



PSA nitrogen generator for Chemical Fiber Industry:



Features:

Support: Very easy to install, operate and require very little maintenance and service. Specialist

support from planning, installation and operation of your project.



Convenience: Easy to install and maintain with an unlimited supply of nitrogen. The generator's PLC

operates the generator automatically, starting and stopping the nitrogen production in direct response

 to demand in the  down

stream distribution system. Only produce the gas you need, when and where you need in exact quantity

and quality needed.



Flexibility: Unmatched System Lay-Out Flexibility. No matter your need or application we can provide

state of art design to meet your requirements.



Fully Automatic & Remote control: Fully automated generator;Unattended Operation; Remote Control

Access; Production begins when demand downstream is sensed. The system will go into standby

mode when oxygen is not required.



Reliability: We will produce the required nitrogen 24x7x365 days for years when called for. High

reliability through fewer moving parts and high quality components. You will get controlled flow and

uninterrupted gas.



How it works ?PSA stands for pressure swing adsorption which means air becomes source gas, nitrogen & oxygen

molecular will be adsorb by preferential adsorption. By using pressurized adsorption and stepdown

desorption, so N2 and O2 are separated discharge rich oxygen gas, ensure produce N2. The whole

line system is consisted of air compressor,air buffer tank, air treatment system, PSA generator and

N2 buffer tank. The vapor, dust and oil in compressed air must be removed through pretreatment,

then into two columns of PSA. CMS absorbs O2 molecular, but hardlyto adsorb N2 molecular.

Therefore, most N2 molecular could be collected and utilized after into N2 buffer tank.



There are totally two columns in PSA generator, it alternately switch. When one column is saturated,

another one is regenerated, two columns work alternately ensure nitrogen generator produces N2

continuously. Switch operation is made  by PLC. Magnetic valve is connected with drive air source

and pneumatic valves. Signadelivereby designePLC, to control magnetic reversal, to move

pneumatic valves. Two columns work alternately, unattended operation.





Fiber Chemical Industry High Purity Nitrogen Generator / Nitrogen Generation Unit 0
