สถานที่กำเนิด: | Suzhou, China |
ชื่อแบรนด์: | SINCE |
ได้รับการรับรอง: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
หมายเลขรุ่น: | PN |
จำนวนสั่งซื้อขั้นต่ำ: | 1 set |
---|---|
ราคา: | Negotiate |
รายละเอียดการบรรจุ: | Exported wooden case |
เวลาการส่งมอบ: | 2 months after received down payment |
เงื่อนไขการชำระเงิน: | L/C, T/T, Western Union, MoneyGram |
สามารถในการผลิต: | 1000 sets /per year |
วัสดุ: | เหล็กกล้าคาร์บอน / เหล็กกล้าไร้สนิม | ใบรับรอง: | BV,,CCS,ISO,TS |
---|---|---|---|
ความจุ: | 5-5,000 Nm3/ชม | ความบริสุทธิ์: | 95%-99.9995% |
จุดน้ำค้าง: | -70 ℃ | ใช้พลังงาน: | 1 กิโลวัตต์ |
แอปพลิเคชัน: | อุตสาหกรรมดับเพลิง | ||
แสงสูง: | sa โรงงานไนโตรเจน,เครื่องกำเนิดก๊าซไนโตรเจน psa,หน่วยสร้างไนโตรเจนความบริสุทธิ์สูง |

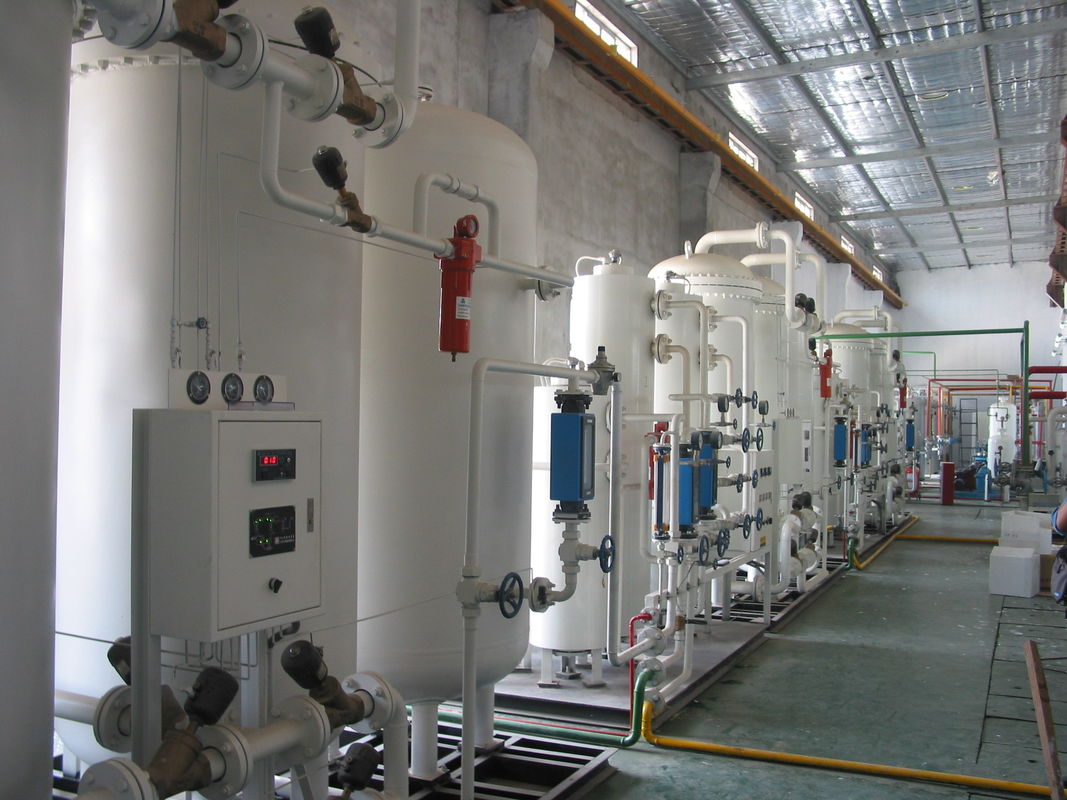

Nitrogen Generation Unit PSA Nitrogen Generator High Purity 99.9995%
1. PSA nitrogen generator for fire works Industry:
The Whole Nitrogen Generation System Includes :
Air Compressor
Air Dryer & Precision Filters
Air tank
Nitrogen Generator
Gas buffer tank
Nitrogen storage vessel
2. Nitrogen Generator Introduction:
The Nitrogen Generator is based on PSA (Pressure Swing Adsorption) Technology, which uses some specific molecular sieves (CMS) to separate the nitrogen gas from the air. It is more and more popular used for on-site nitrogen supply and filling nitrogen cylinders.
Our PSA Nitrogen Generator consists of air compressor, air dryer, air filters, PSA nitrogen generator and related control system. The patented vessel design enable our PSA Nitrogen Generator a lowest energy consumption and best efficiency.
Nitrogen Generator specifications:
1. Nitrogen capacity: 2~1000Nm3/h
2. Nitrogen purity: 90%, 99%, 99.5%, 99.9%, 99.99%, 99.999%...
3. Nitrogen pressure from the Nitrogen Generator: 1-7bar
4. Skid-mounted enable an easy installation and transportation.
Features of our Nitrogen Generator:
(1) The Nitrogen Generator is equipped with a stable Atlas Copco screw air compressor;
(2) The Nitrogen Generator is equipped with Siemens PLC and SMC or CKD valves;
(3) Fewer moving parts enable the Nitrogen Generator more reliable and less maintenance jobs;
(4) The NitrogenGenerator does not need foundation base;
(5) The Nitrogen Generator does not need cooling water;
(6) The Nitrogen Generator is skid-mounted, very easy to be transported and installed;
(7) The Nitrogen Generator is very easy to be operated, unmanned operation can be realized;
(8) Consumable parts: only filter elements, replaced every 6000-8000hours.
Maintenance cost is very low.
Specifications:
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
... |
... |
... |
... |
... |
... |
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
.
