Place of Origin: | Suzhou,China |
ชื่อแบรนด์: | SINCE-GAS |
ได้รับการรับรอง: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
Model Number: | PM |
Minimum Order Quantity: | 1 set |
---|---|
ราคา: | Negotiate |
Packaging Details: | Normal exported wooden case |
Delivery Time: | 2 months after received down payment |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 1000sets/year |
วัสดุ: | เหล็กกล้าคาร์บอน / เหล็กกล้าไร้สนิม | ความจุ: | 5-5,000 Nm3/ชม |
---|---|---|---|
ความบริสุทธิ์: | 95%-99.9995% | จุดน้ำค้าง: | -70 ℃ |
แหล่งจ่ายไฟ: | 220V/50Hz | ใช้งานแรงดัน: | 1 กิโลวัตต์ |
แสงสูง: | เครื่องกำเนิดเมมเบรนไนโตรเจน,หน่วยเมมเบรนไนโตรเจน,เครื่องกำเนิดไนโตรเจนความบริสุทธิ์สูง 5 |

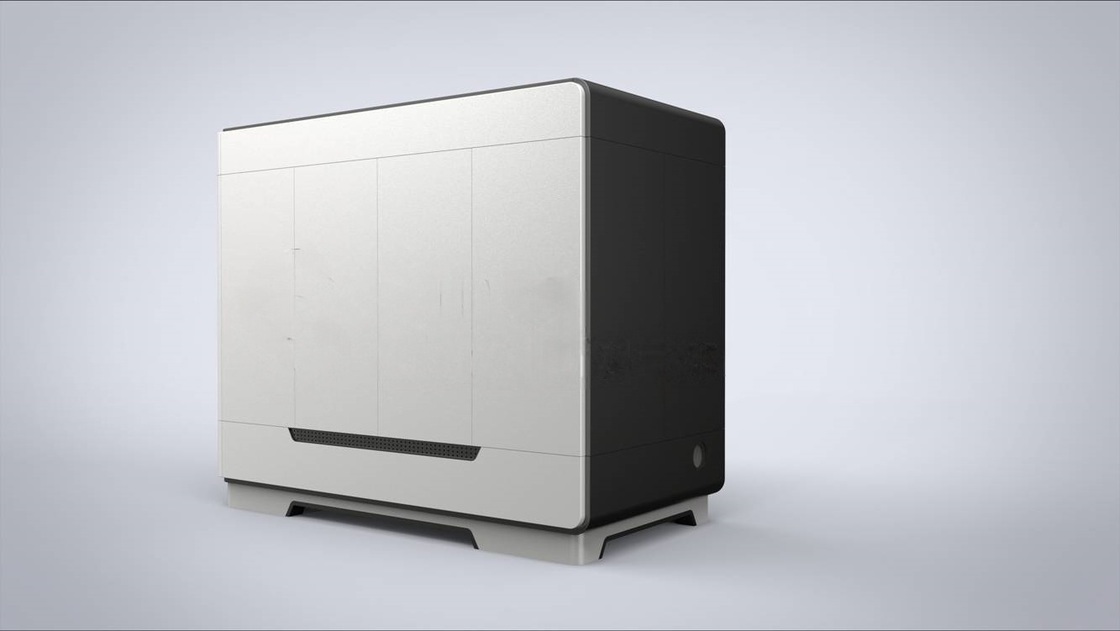

99.999% High Purity Nitrogen Generator PM Membrane Nitrogen Gas Generation
Working Principle of 99.99% NitrogenGenerator
Under a certain pressure, using the large difference of the diffusion rate between nitrogen and oxygen
from the air in the carbon molecular sieve, a large number of oxygen is adsorpted by carbon molecular
sieve, while nitrogen is collected in a short time, to achieve separation of oxygen and nitrogen.
The adsorption capacity of carbon molecular sieve is significantly different with different
oxygen pressures, reducing the pressure will release oxygen from carbon molecular sieve, this make
carbon molecular sieve regeneration, then can be used repeatedly.
Using two adsorption towers, one for adsorption and nitrogen generator, the other for desorption and recycling.
They switch with each other, thus continuous output of high-quality nitrogen.
Environment condition of equipment
1.installation place: ground grading, without foundation, but it is necessary to have a sewage discharge
ditch.
2.The reserved area: about 200m2.
3.Ambient temperature: ≤40°C.
4.Relative humidity: ≤80%.
5.Power:440V/ 380V/220V,60/Hz/ 50Hz
Specification:
Item |
Technical |
Remark |
N2 flow rate |
1200Nm3/h |
Standard state |
N2 purity |
≥95.0% |
non-oxygen content |
N2 outlet pressure |
0.1~0.6Mpa |
Gage pressure, adjustable |
N2 outlet dew point |
≤ 45 °C | Atmospheric dew point |
Nitrogen system
1 air compressor
2 Compressed air pretreatment system (dryer and multistage filters)
3 Air buffer tank
4 PSA nitrogen generator
5 Nitrogen gas buffer tank
6 Control system(including man-machine control interface)
7 Instrument and meter (installed in nitrogen generator)
Required air consumption
Item
Technical parameter
Remark
Flow rate
>1200m3/h
Pressure
>0.8Mpa
PSA Nitrogen Generator
Item
Technical parameter
Remark
Model
PM-1200
N2 output
1200Nm3/h
Standard state
N2 purity
≥95%
Non-oxygen content in GB
Pressure
0.8Mpa
Outlet pressure
0.1-0.6Mpa
Adjustable
Dew point of N2 outlet
≤-45°C
Atmospheric dew point
ผู้ติดต่อ: Jojo
โทร: +8613862022817
