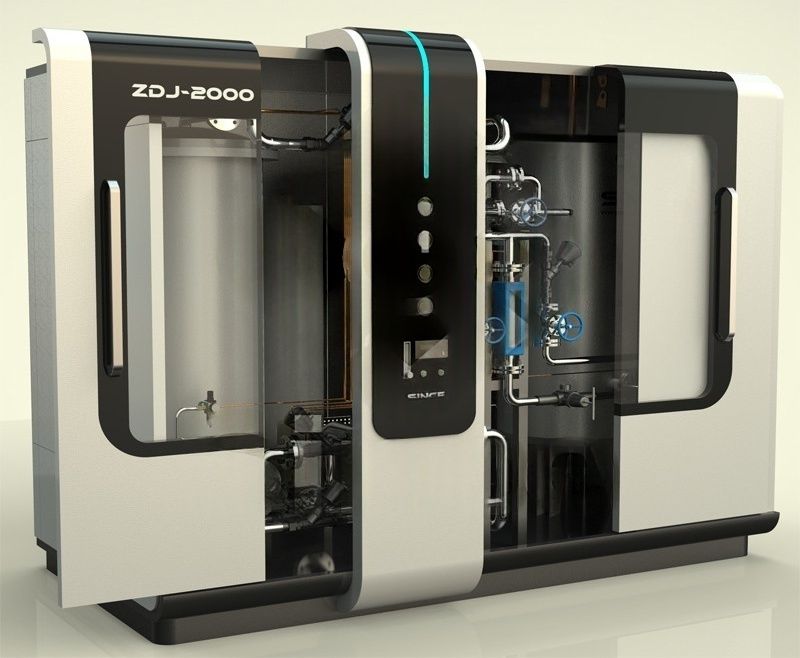

BV,CCS,CE,TS,ISO Medical Nitrogen generator package system

BV,CCS,CE,TS,ISO Medical Nitrogen generator package system

  • BV,CCS,CE,TS,ISO Medical Nitrogen generator package system
BV,CCS,CE,TS,ISO Medical Nitrogen generator package system
รายละเอียดสินค้า:
Place of Origin: Suzhou,China
ชื่อแบรนด์: SINCE
ได้รับการรับรอง: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PN
การชำระเงิน:
Minimum Order Quantity: 1 set
ราคา: Negotiate
Packaging Details: Normal exported standard package
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per year
ติดต่อ
รายละเอียดสินค้า
ใบรับรอง: BV,ซีซีเอส,CE,TS,ISO วัสดุ: เหล็กกล้าคาร์บอน / เหล็กกล้าไร้สนิม
ความจุ: 5-5,000 Nm3/ชม ความบริสุทธิ์: 95%-99.9995%
พาวเวอร์ซัพพลาย: 220V/50Hz ใช้พลังงาน: 1 กิโลวัตต์
แอปพลิเคชัน: ยา อาหาร พลังงานใหม่
แสงสูง:

sa โรงงานไนโตรเจน

,

ระบบสร้างไนโตรเจน psa

,

ระบบบรรจุภัณฑ์เครื่องกำเนิดไนโตรเจนทางการแพทย์

BV,CCS,CE,TS,ISO Medical Nitrogen generator package system

Description:

(1) Nitrogen Generator
1.1) High purity
1.2) Excellent energy-saving
1.3) Smoothly running,long-life
1.4) Automatic operating
1.5) Certificate:ISO9001:2008

Introduction:

(1)  What is PSA Technology?

PSA Technology is a very mature technology and has been around since the 1970's. In fact, thousands of PSA plants are serving customers worldwide. We have supplied our PSA plants to customers in over 56 countries.
We explain the PSA technology below using a simple process diagram.

BV,CCS,CE,TS,ISO Medical Nitrogen generator package system 0

Air is composed of 78% Nitrogen and 21% Oxygen. PSA Nitrogen generation technology works on the principle of air separation by adsorbing Oxygen and separating Nitrogen.

Pressure Swing Adsorption (PSA Nitrogen) process comprises of 2 vessels filled with Carbon Molecular Sieves (CMS). (see image below for detail of vessels).

Step 1: Adsorption
Pre filtered compressed air is passed through one CMS filled vessel. Oxygen is adsorbed by the CMS and

Nitrogen comes out as the product gas. After some time of operation, the CMS inside this vessel gets

saturated with Oxygen and can no longer adsorb.
Step 2: Desorption
Upon saturation of the CMS in the vessel, the process switches nitrogen generation to the other vessel,

while allowing the saturated bed start the process of desorption and regeneration. The waste gas (oxygen, carbon dioxide, etc.) is discharged into atmosphere.
Step 3: Regeneration
In order to regenerate the CMS in the vessel, part of the Nitrogen produced by the other tower is purged

into this tower. This allows for quick regeneration of the CMS and to make it available for production in the next cycle.

The cyclical nature of the process between the two vessels ensures continuous production of pure

Nitrogen.

BV,CCS,CE,TS,ISO Medical Nitrogen generator package system 1

Benefits of our PSA Nitrogen Generators:



·  Experience - We have supplied over 1000 Nitrogen Generators all over the world.

·  German Technology - We have German collaboration for our technology and have fine tuned this technology to gain proprietary advantages in several key areas.

·  Automated Operation - PSA Nitrogen Gas plants we manufacture incorporate complete automation and no personnel are required for operating the Gas plant.

·  Low Power Consumption - We guarantee a very low power consumption for Nitrogen production by optimum design to efficiently use the compressed air and maximize production of Nitrogen gas.



Specifications:

No

Model

Capacity(Nm3/h)

Purity

Power(KW)

Overall size(mm)

1

2

3

4

PN-3-39

PN-5-29

PN-5-295

PN-8-295

3

5

5

8

99.9%

99.5%

99%

95%





0.5





1800*1400*1500

5

6

7

8

PN-5-49

PN-8-39

PN-12-295

PN-15-29

5

8

12

15

99.99%

99.9%

99.5%

99%





0.5





1800*1400*1800

9

10

11

12

PN-10-49

PN-15-39

PN-25-295

PN-30-39

10

15

25

30

99.99%

99.9%

99.5%

99%





0.5





2000*1700*2250

13

14

15

16

PN-15-49

PN-22-39

PN-35-295

PN-45-29

15

22

35

45

99.99%

99.9%

99.5%

99%

0.5

2100*1800*2200

17

18

19

20

PN-20-49

PN-30-39

PN-50-295

PN-60-29

20

30

50

60

99.99%

99.9%

99.5%

99%

0.5

2200*1800*2200

21

22

23

24

PN-30-49

PN-45-39

PN-75-295

PN-88-29

30

45

75

88

99.99%

99.9%

99.5%

99%

0.5

2400*1900*2200

25

26

27

28

PN-40-49

PN-60-39

PN-100-295

PN-120-29

40

60

100

120

99.99%

99.9%

99.5%

99%

0.5

2500*2100*2500

29

30

31

32

PN-50-49

PN-70-39

PN-120-295

PN-140-29

50

70

120

140

99.99%

99.9%

99.5%

99%





0.5





2600*2200*2850

33

34

35

36

PN-60-49

PN-90-39

PN-160-295

PN-190-29

60

90

160

190

99.99%

99.9%

99.5%

99%





0.5





2800*2200*2500

37

PN-80-49

80

99.99%

0.5



38

39

40

PN-120-39

PN-200-295

PN-250-29

120

200

250

99.9%

99.5%

99%



0.5



3200*1400*2800

41

42

43

44

PN-100-49

PN-140-39

PN-250-295

PN-290-29

100

140

250

290

99.99%

99.9%

99.5%

99%





0.5





3500*1500*2800

...

...

...

...

...

...

Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly





Figures of nitrogen generator :

High purity, and the purity of N2 could be regulated between 95% to 99.9995% according as user's need;
.High efficiency, low energy consumption of compressed air;
.Standard models, nitrogen generator could be parallel for additional nitrogen output;
.Low dew point, dew point of product ≤ -40 °C to ensure the quality of welding;
.Available frame, appearance clean and easy cleaning management to meet the high cleanliness requirement of electronics industry.



Application:

1. Metallurgy: For anneal protection, agglomeration protection, nitrogen, furnace washing and blowing ,etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material, copper process, metallic mesh, galvanized wire, semiconductor, etc.

2. Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc. Used in fields such as chemical ,urethane elastic fiber, rubber, plastic, tire, polyurethane, biological technology, intermediate, etc.

3. Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.



During the last 10 years,about 98% old customers firmly choose SINCE

Why they always choose SINCE?

Many years of experience and expertise in manufacturing and supplying gas plants;

,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom company who got ,TS (Manufacture License of special equipment) CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen generator.

Excellent infrastructure set up teamed by experienced and qualified engineers.

Sophisticated and developed R&D wing in assistance for installation and use of plants.
