Place of Origin:
Suzhou
ชื่อแบรนด์:
SINCE-GAS
ได้รับการรับรอง:
CE,ABS,DNV,CCS,LR,BV,ASME,GOST
Model Number:
PN-NP-C
| Attribute | Value |
|---|---|
| Material | Carbon steel or stainless steel |
| Certificates | CE, ABS, CCS, BV, DNV, LR |
| Pressure | 8-10 bar |
| Purity | 95%-99.9995% |
| Dew point | -40 - 70℃ |
| Adsorbent | CMS |

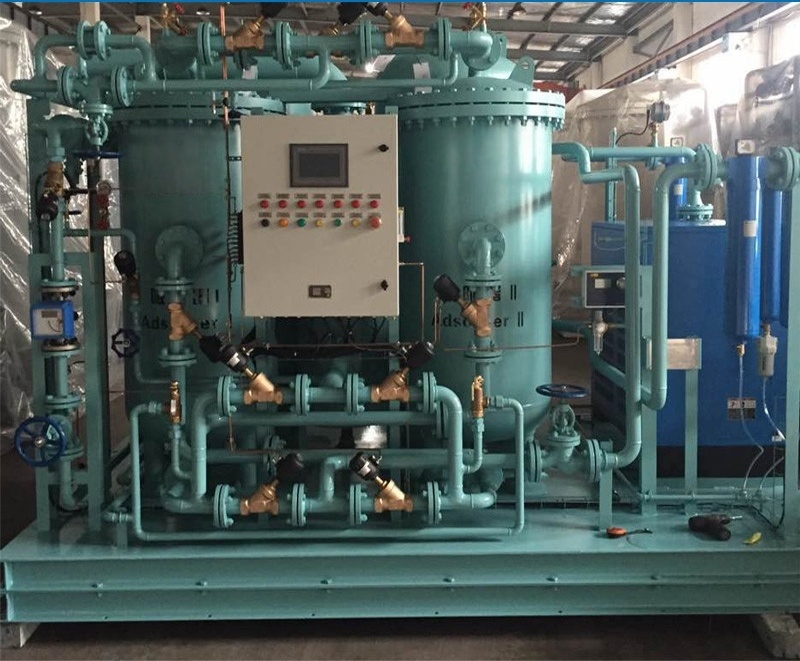

The CE verified PN-NP-C High Purity Nitrogen Generator delivers exceptional performance with purity levels ranging from 95% to 99.9995%.
| Item | Specification |
|---|---|
| Nitrogen | High purity 99.9995% |
| Energy | Excellent energy-saving |
| Working life | ＞20 years |
| Operating method | Fully automatic |
| Certificates | CE, TUV, CCS approved |
Using PSA technology, the nitrogen generator isolates nitrogen molecules from other molecules in compressed air (water, oxygen, CO2, etc). The carbon molecular sieve (CMS) adsorbent retains all other molecules while allowing nitrogen to pass through. The system features two towers - one working while the other regenerates by releasing CO2 and oxygen, with a switching cycle of approximately 58 seconds.
| No | Model | Capacity (Nm3/h) | Purity | Power (KW) | Overall size (mm) |
|---|---|---|---|---|---|
| 1 | PN-3-39 | 3 | 99.9% | 0.5 | 1800*1400*1500 |
| 2 | PN-5-29 | 5 | 99.5% | 0.5 | 1800*1400*1500 |
| 37 | PN-80-49 | 80 | 99.99% | 0.5 |
Note: For more information, please contact Since Gas System Co., Ltd or send us an email directly.
